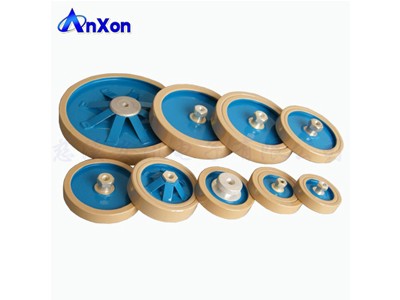

安訊圓盤形板式高頻高功率陶瓷電容器

慈溪安訊電子有限公司專業從事研發，生產和銷售高壓高頻陶瓷電容器， CCG81型板形高功率陶瓷電容器是本公司的支柱產品。工藝成熟、產品質量穩定可靠、品種齊全。該產品具有耐電壓高、介質損耗低、無功功率大、高頻性能好、使用壽命長和安裝方便等特點。產品主要用于高頻焊管、高頻干燥、高頻電爐、塑料熱合機及無線電通信設備中。該產品遠銷歐美、東南亞和全國各地，深受國內外客戶的好評。

額定電壓: 5000V, 8000V, 10KV, 11KV, 12KV, 13KV, 14KV, 15KV, 20KV, 21KV, 25KV, 30KV,

容量: 50pf, 100pf, 150pf, 200pf, 250pf, 300pf, 330pf, 350pf, 500pf, 600pf, 750pf, 1000pf, 1500pf, 1600pf, 2000pf, 2200pf, 2500pf, 3000pf, 4000pf, 5000pf, 6000pf

主要規格,

30kva: 5kv 100pf, 150pf, 200pf, 300pf

40kva: 5kv 330pf, 8kv 300pf, 330pf, 350pf, 12kv 500pf, 15kv 500pf

60kva: 10kv (300pf, 350pf, 500pf, 600pf), 12kv (300pf, 350pf), 15kv (100pf, 150pf, 200pf, 250pf, 300pf)

65kva: 10kv 750pf, 12kv 500pf

75kva: 8kv 1000pf, 10kv (500pf, 1000pf), 12kv (300pf, 350pf), 13kv (500pf, 1000pf), 15kv (300pf, 350pf, 500pf)

90kva: 10kv (1000pf, 1500pf), 11kv 1600pf, 12kv (1000pf, 1500pf), 14kv (500pf, 600pf), 15kv (500pf, 1000pf, 1500pf), 20kv (300pf, 500pf), 25kv (300pf, 500pf), 30kv (300pf, 500pf)

125kva: 10kv 2500pf, 12kv (2000pf, 2500pf, 3000pf), 13kv 2000pf, 14kv 1600pf, 15kv (1000pf, 1500pf, 2000pf, 2200pf), 21kv (1000pf, 1500pf, 2000pf), 25kv (1000pf, 1500pf), 30kv (500pf, 1000pf)

150kva 12kv 6000pf, 13kv (4000pf, 5000pf), 15kv (2000pf, 2500pf, 3000pf), 17kv 3000pf, 20kv (2000pf, 2500pf), 30kv (1000pf, 1500pf, 1600pf)

PE220 150kva: 12kv 6000pf, 13kv (4000pf, 5000pf), 17kv 3000pf, 20kv (2000pf, 2500pf),

PE210 150kva: 30kv (1000pf, 1500pf, 1600pf)

PE200 150kva: 14kv (2000pf, 2500pf, 3000pf)

PE100 40kva: 11kv (1500pf, 1600pf), 13kv (1000pf, 1200pf), 14kv (400pf, 500pf, 600pf, 800pf)

PE140 90kva: 12kv 3000pf, 13kv (2000pf, 2500pf), 14kv (1000pf, 1200pf, 1500pf, 1600pf),

21kv 1000pf, 25kv (600pf, 800pf)

PD70 20kva: 11kv 800pf, 12kv 600pf, 13kv (400pf, 500pf), 14kv 300pf

PD80 75kva: 10kv 1000pf, 13kv (500pf, 1000pf), 15kv 500pf

CCG11-2U 1500PF 5KV-8KVA, CCG81-1U 150PF 15KV-12KVA, CCG81-1U 300PF 12KV-82KVA, CCG81-1U 500PF 10KV-8KVA, CCG81-2U 300PF 15KV-30KVA, CCG81-2U 500PF 15KV-15KVA, CCG81-2U 1000PF 7KV-15KVA, CCG81-3U 500PF 15KV-90KVA, CCG81-4U 500PF 25KV-90KVA, CCG81-4U 1000PF 20KV-100KVA, CCG81-5U 1500PF 21KV-120KVA, CCG81-6U 2000PF 20KV-120KVA, CCG81-6U 3000PF 10KV-90KVA,

CCG81-7U 3000PF 20KV-200KVA, DT20/1000P/3KV, DT20/2000P/202/3KV,

DT20/1000P/9KV, DT27/2000P/6KV, DT60/300P/12KV-8KVA,

DT60/300P/15KV-40KVA, DT60/300P/12KV-15KVA, DT60/300P/12KV-40KVA,

DT80/300P/15KV-15KVA, DT110/1500P, DT60/500P/10KV-40KVA,

DT80/500P/15KV-40KVA, DT110/1000P, DT140/1000P, DT110/500P,

DT80/1000P/15KV, DT140/500P/25KV-90KVA, DT80/1000P/7KV-15KVA,

DT150/500P/12KV-120KVA, CCG81-1300pf, 500pf, 10kv, 12kv, 8kva
